Sunwood Snapdown Brown 10-16mm Glazing Bar
These rafter supported snapdown glazing bars are included in our Sunwood range. They are the perfect solution for providing a secure weather tight glazing option for 10mm, 16mm Sunlite Polycarbonate, suited for 50mm rafters.

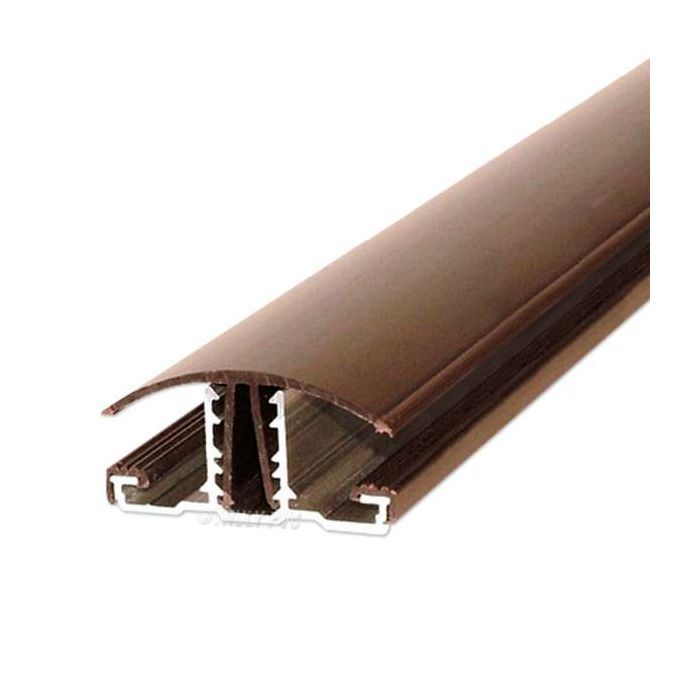

The glazing bar is incoportated with an extruded aluminium the base which is screwed on to the timber rafters beneath; the PVC top cap snaps into the aluminium base and the EPDM rubber gaskets form a weather tight seal. Please note the rubber gaskets are joined together and need to be split in half before installing.
1 end cap is provided with each glazing bar as standard.
The Snap down glazing bar is ideal for use on lean-tos and shelters.
This bar has a heavy duty aluminium base section, that is to be fitted to a continuous rafter.
The Polycarbonate sheeting is to be laid between the bars, the top cap is then clicked down into position, to suit the polycarbonates thickness.
This glazing bar is suitable for 10mm and16mm thickness. The Gasket and one end cap is also included.
- Easy to clean
- Easy to cut
- Easy to fix
- Light Weight
- Low Cost
- UV Stable
