Sunglaze system components fit all panel types, except end closures

Glazing Set

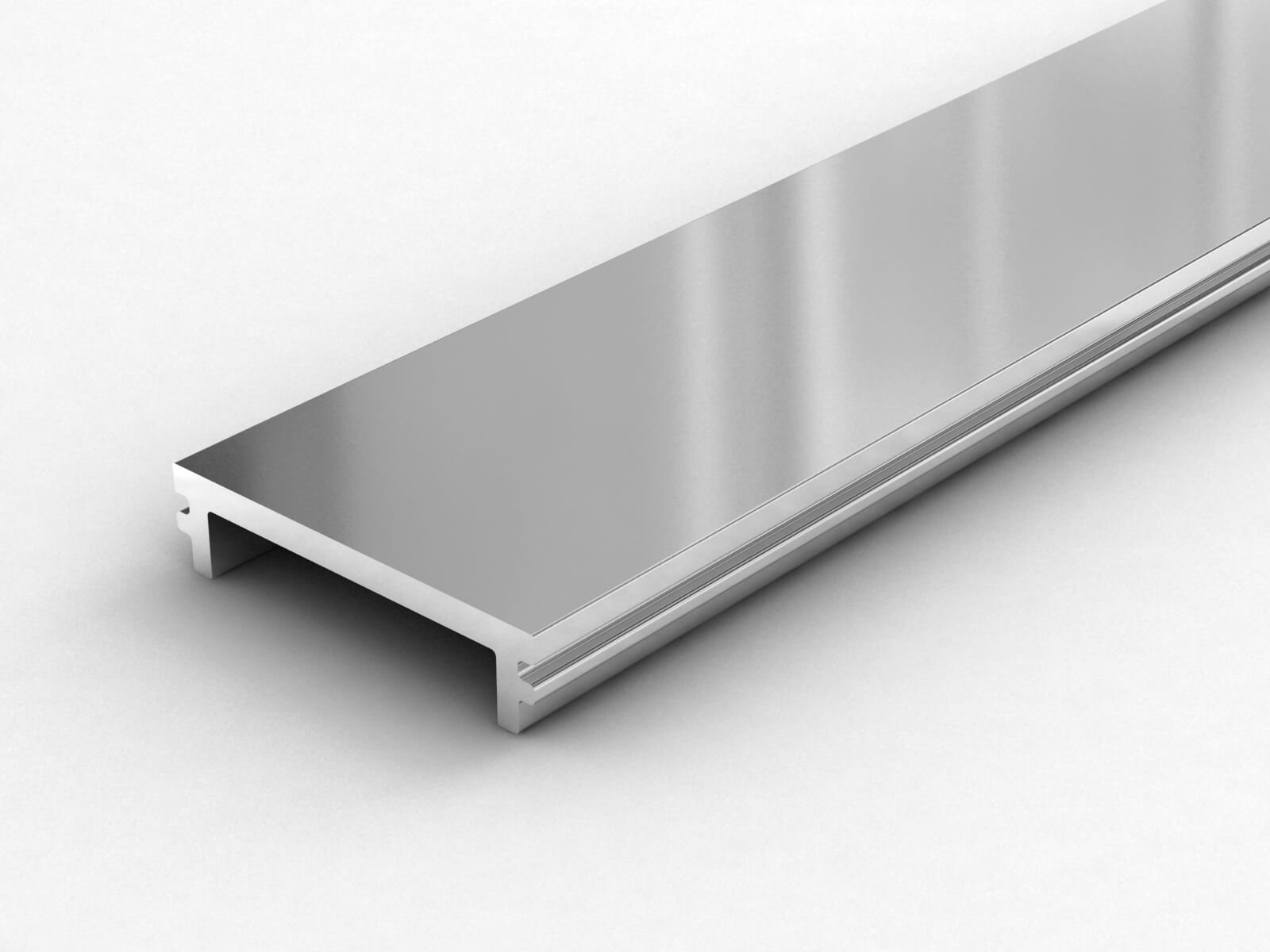

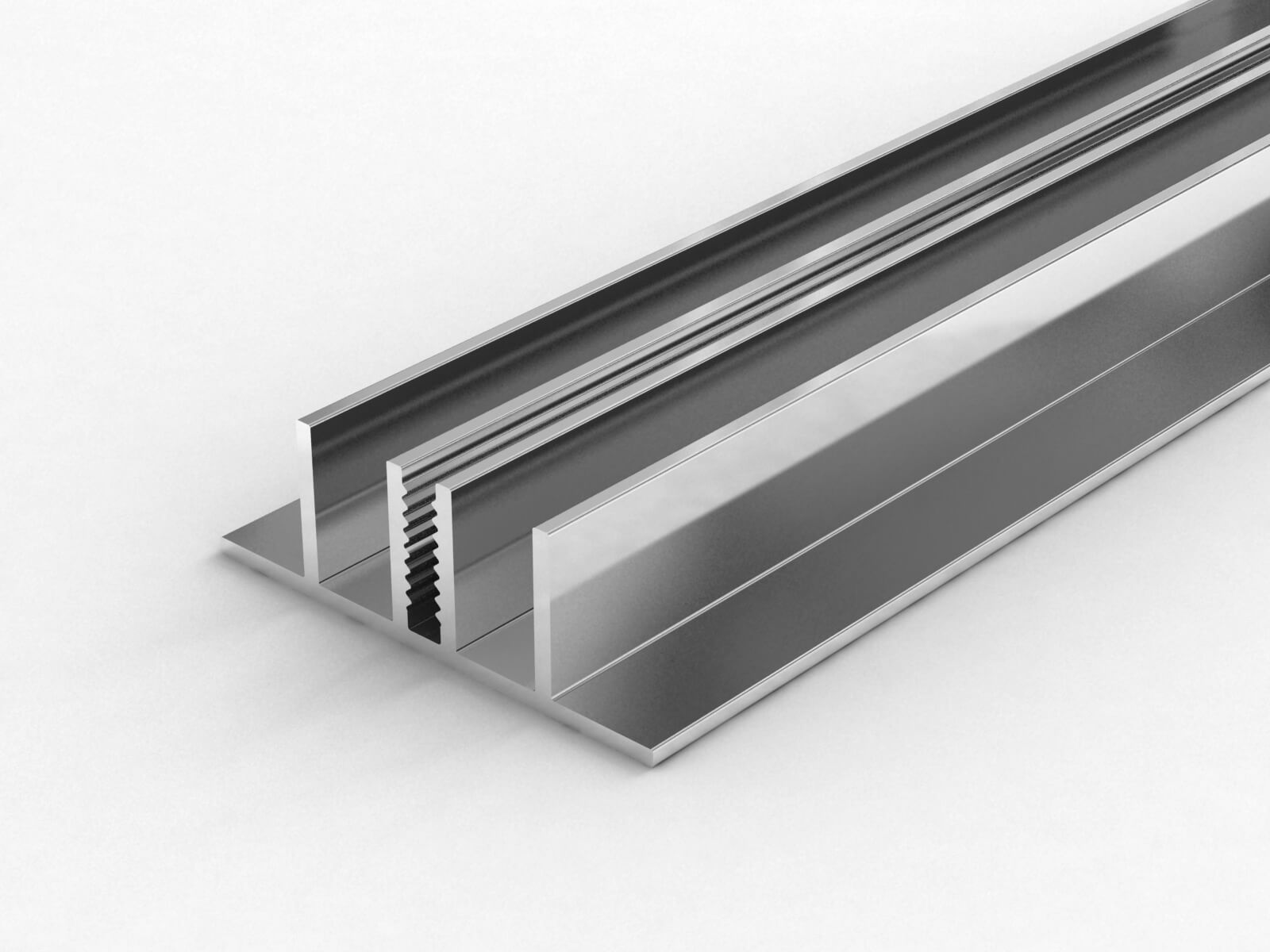

The Base (part 04) is an extruded aluminum profile in grey paint coating. Its maximum length is 6m. The Base is the lower part of the glazing set, placed under the panels and fixed to the structure by the Fixing screws. The Cap (part 05) is an extruded aluminum profile with grey paint coating. Its maximum length is 6m. The Cap is the upper profile of the glazing assembly, positioned onto the panel edges and Base, and attached to the Base by the Locking screws.

The Cap-Plug (part 06) is 19.5mm wide aluminum strip with grey paint coating. Its maximum length is 6m. The Plug is clicked into place onto the Cap, concealing the Locking screws from the top, and providing a smooth surface.

Screws

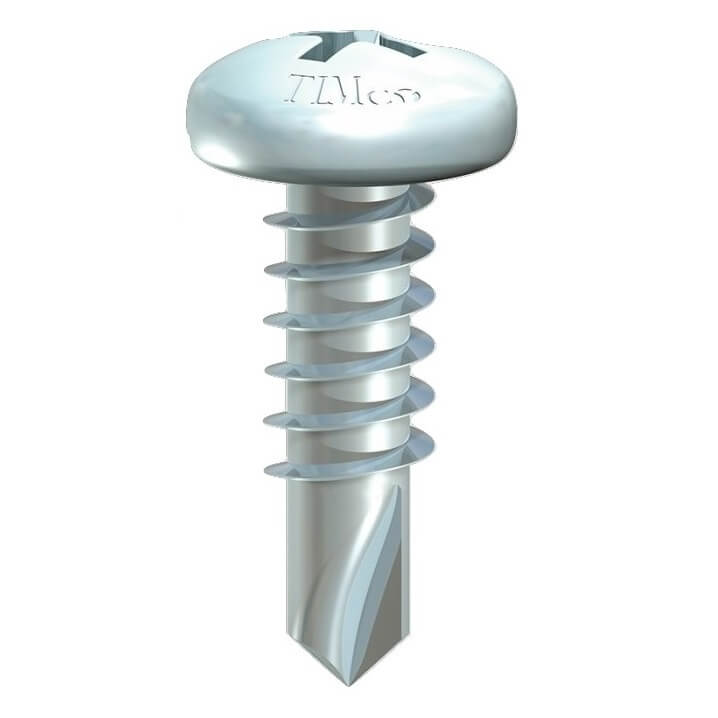

The fixing screw (part 10) is a cross-head self drilling screw, 4.8x19mm (#10x0.75”).

The fixing screw (part 10) is a cross-head self drilling screw, 4.8x19mm (#10x0.75”).

These screws fix the Base to the structure.

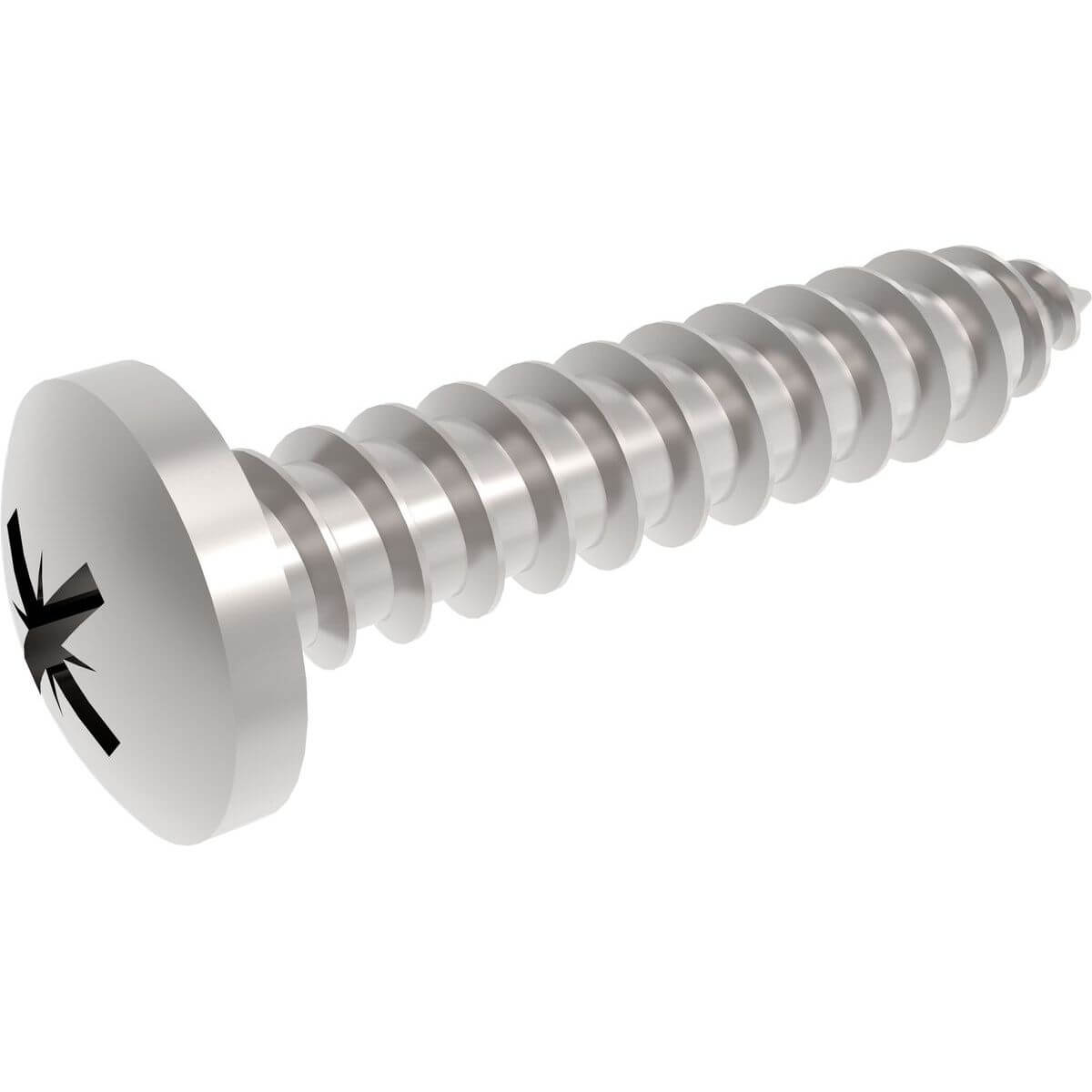

The locking screws (part 11&12) are cross-head tapping screw, 5.5x19mm (#12x0.75”) and 5.5x25mm (#12x1”). These screws attach the Cap onto the Base

End Closure

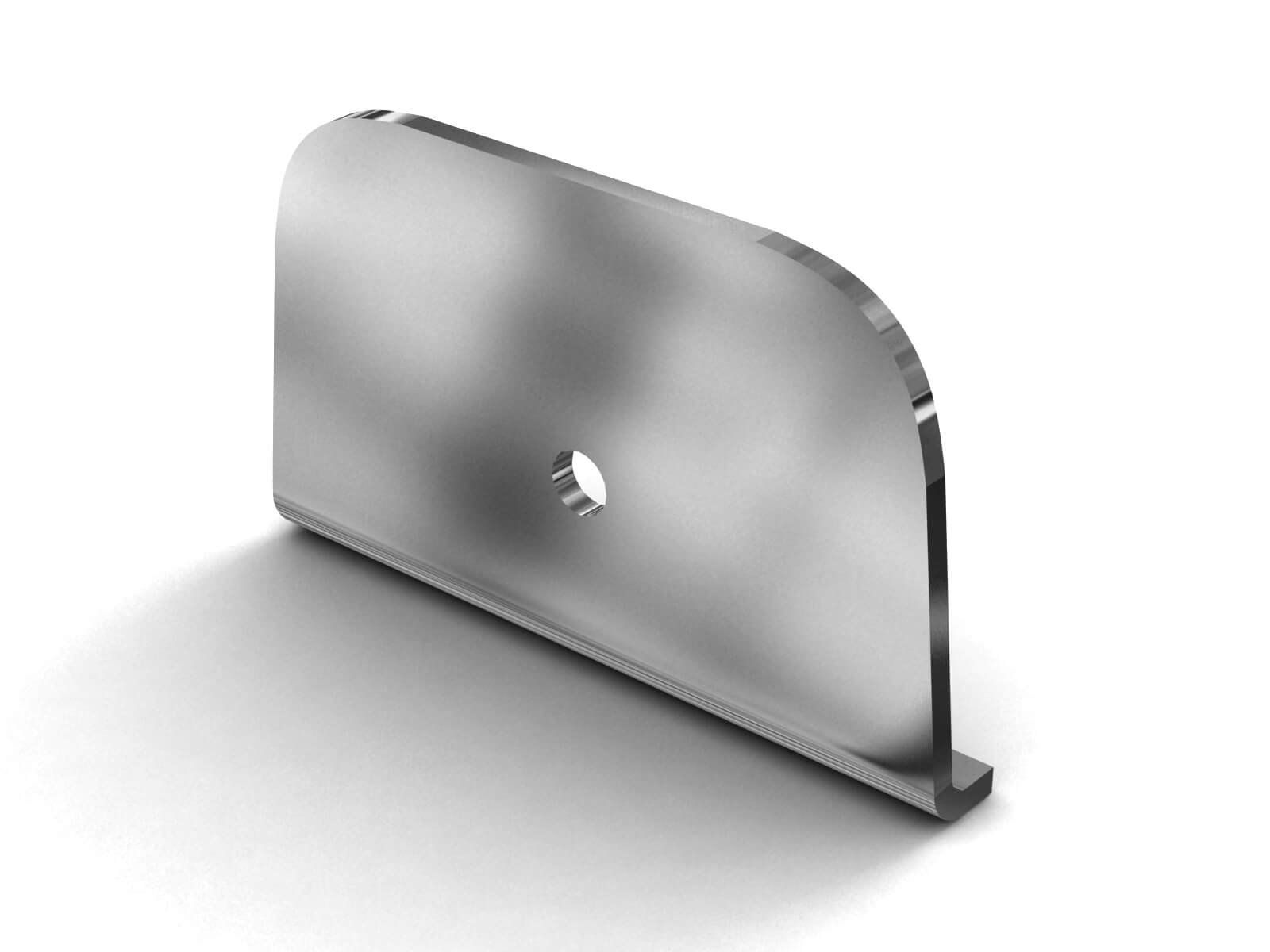

These mill finished aluminum plates plug at both ends of the profiles assembly.

3mm End Closure (part 07) is used for 3/600 panel assembly.

4mm End Closure (part 08) is used for 4/600 panel and 4/800 panel assembly.

6mm End Closure (part 08) is used for 4/600 panel and 4/800 panel assembly.
